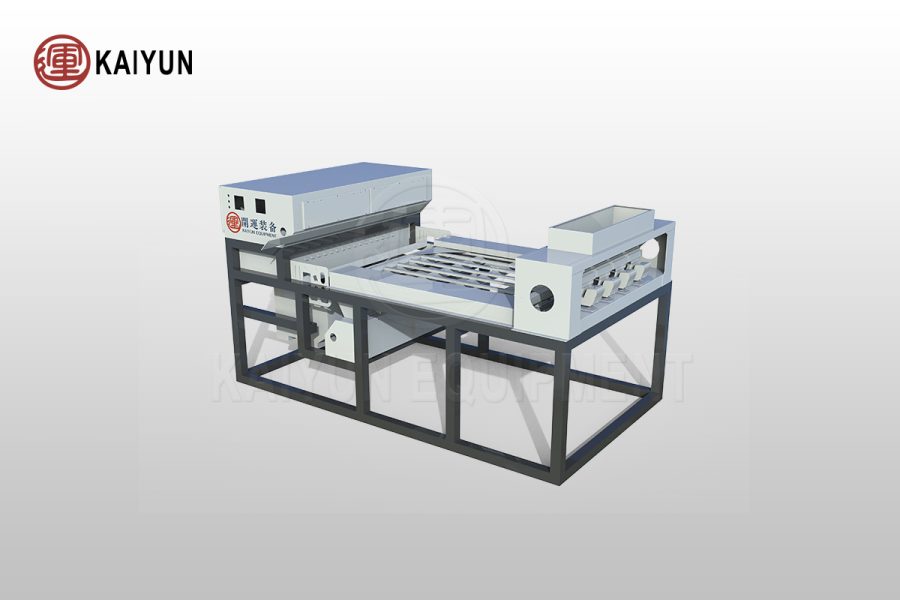

Product Description
The belt-type color sorter is a high-precision intelligent sorting equipment suitable for easily broken, smooth or irregular materials. Unlike the chute type, the crawler structure can smoothly convey materials and avoid identification errors caused by rolling and jumping.
The belt-type color sorter is particularly suitable for high value-added or fragile materials such as barite, silica, quartz sand, feldspar, phosphate rock, garnet, lithium ore, various agricultural products, chinese medicinal materials and plastic materials.
Working Principle

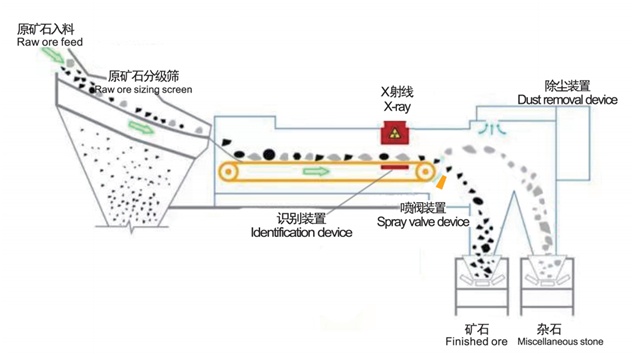

When the belt-type color sorter is working, the material falls evenly to the conveyor crawler through the vibrating material distribution system, and is stably conveyed to the identification area through the crawler. The high-definition CCD camera captures the image, and the intelligent algorithm judges the color, shape and impurities. The control system issues a command, and the high-speed spray valve accurately removes impurities, and qualified products continue to move forward.
Core Advantages
Wide sorting range and low breakage rate
The crawler conveys smoothly, and barite, potassium feldspar quartz, manganese ore, tungsten ore, coal gangue, silica, etc. can be selected.
High output, high stability
Multi-channel is more efficient, high selection rate, low carry-out ratio.
Long life and durable use
304 stainless steel, OSRAM LED lights, imported AI chips and other high-end configurations make the machine more durable.
Accurate identification
CCD or near-infrared imaging system, color difference is accurate to 0.01mm.
Wide field of view scanning
Belt-Type Color Sorter suitable for irregular materials, multi-angle identification is more comprehensive.
Widely applicable
Belt-Type Color Sorter supports color sorting, shape sorting, mildew detection, foreign body removal and other functions.
Intelligent learning
AI algorithm automatically optimizes parameters, switching materials quickly and conveniently.
Automatic cleaning system
Belt-Type Color Sorter automatic dust removal of the lens to ensure long-term and efficient operation.
Parameters
| Model | Channel | Output (tons/hour) | Color sorting accuracy | Carry-out ratio Good:Bad | Voltage | Power (kw) | Air pressure | Dimensions(mm) | Weight (kg) |
| KL-300 | Single | 2–4 | >99% | 10：1 | 220V/50Hz | 1.5 | 0.6Mpa | 3000×950×1650 | 500 |
| KL-600 | Single | 4–8 | >99% | 10：1 | 220V/50Hz | 2 | 0.6Mpa | 3000×1350×1650 | 880 |
| KL-1200 | Single | 8–15 | >99% | 10：1 | 220V/50Hz | 3 | 0.6Mpa | 3000×1850×1650 | 1450 |
| KL-1500 | Single | 12–18 | >99% | 10：1 | 220V/50Hz | 5 | 0.6Mpa | 3000×2150×1650 | 1840 |
| KL-1800 | Single | 15–24 | >99% | 10：1 | 220V/50Hz | 7.5 | 0.6Mpa | 3000×2500×1650 | 2300 |
| KL2-600 | Double | 4–8 | >99% | 10：1 | 220V/50Hz | 3 | 0.6Mpa | 3500×1350×2450 | 1250 |
| KL2-1200 | Double | 8–15 | >99% | 10：1 | 220V/50Hz | 6 | 0.6Mpa | 3500×1850×2450 | 2450 |
| KL2-1600 | Double | 12-20 | 99% | 10：1 | 220V/50Hz | 6 | 0.6Mpa | 3500x2300x3100 | 2750 |
| KL2-1800 | Double | 15–24 | >99% | 10：1 | 220V/50Hz | 9 | 0.6Mpa | 3500×2850×2450 | 2950 |
The above parameters are based on Φ20mm particles. The specific output will vary with the specific gravity and particle size of the material.
Optional material particle size range: 0.5mm (20 mesh) – 50mm
