Product Introduction

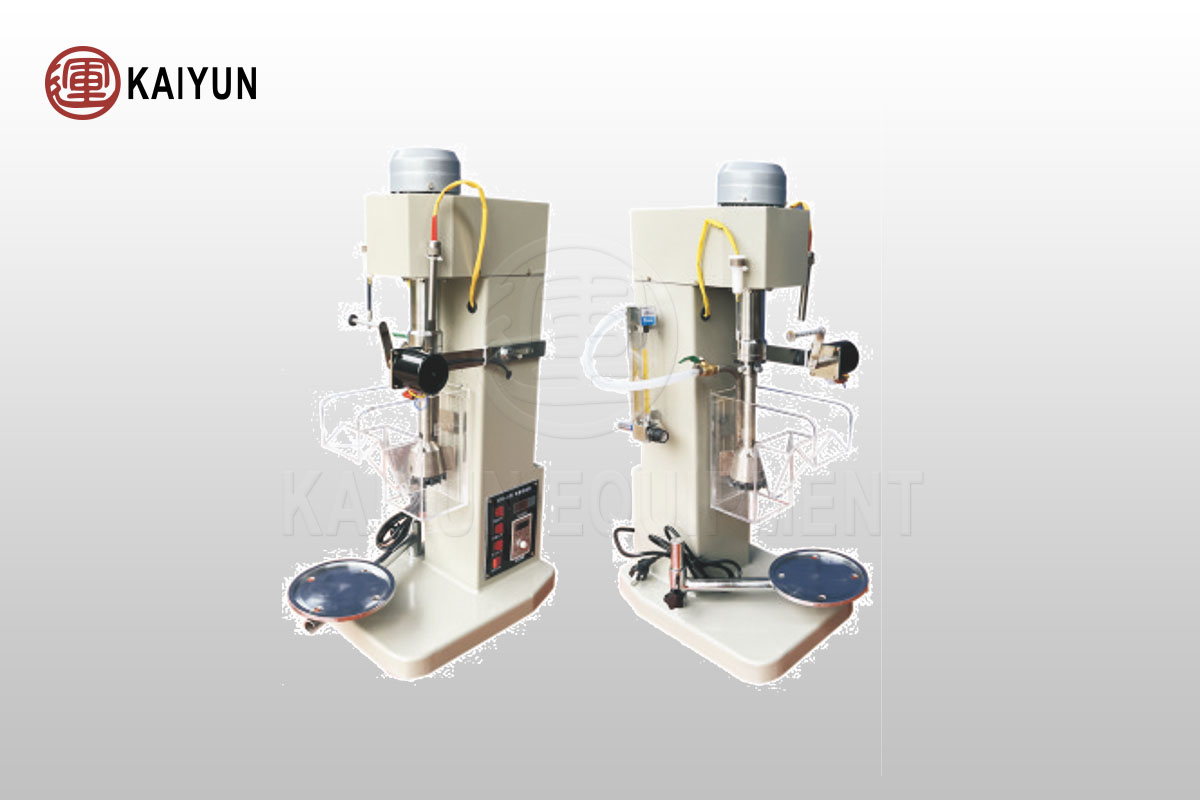

XFD-III single cell flotation machine is suitable for mixing, washing, separating and selecting small amounts of ore samples in mines such as geology, metallurgy, building materials, and chemical industry, and laboratories of scientific research departments.
Advantages
Frequency conversion technology, stepless speed regulation of impeller.
Correct adjustment direction, reliable operation.
Can be equipped with a temperature controller to display the slurry temperature in the flotation tank.
Parameter
| Model | XFDIII0.5 | XFDIII0.75 | XFDIII1 | XFDIII1.5 | XFDIII3 | XFDIII8 |
| Channel volume (L) | 0.5 | 0.75 | 1.0 | 1.5 | 3.0 | 8.0 |
| Impeller speed (r/min) | 0-2800 | 0-2800 | 0-2800 | 0-2800 | 0-2800 | 0-1400 |
| Impeller diameter (mm) | φ45 | φ45 | φ55 | φ60 | φ70 | φ100 |
| Scraper speed (r/min) | 30 | 30 | 30 | 30 | 30 | 30 |
| Feed particle size (mm) | 0.25 | 00.25 | 0.25 | 0.25 | 0.25 | 0.25 |
| Heater power(w) | 250 | 250 | 250 | 250 | 250 | ＞250 |
| Motor (w) | 120 | 120 | 120 | 120 | 120 | 250 |
| Voltage | 220v single | 220v single | 220v single | 220v single | 220v single | 380v three |
| Dimensions (mm) | 440*350*750 | 440*350*750 | 440*350*820 | 440*350*820 | 470*350*870 | 700*430*920 |
| Machine weight (kg) | 30 | 30 | 32 | 32 | 35 | 80 |
